For steel building manufacturers evaluating C/Z purlin equipment, a clear technical brief makes supplier discussions more productive. This Xinhonghua application update focuses on the drawings, production mix and acceptance requirements that help turn an initial inquiry into a defined equipment proposal.
Provide drawings of each required C or Z section, including web, flange, lip and punching dimensions. Specify the steel grade, base metal thickness and coating. A machine model name or nominal web range is only a starting point; the complete section and material combination must be reviewed for the selected configuration.
A factory producing long runs of one section has different planning needs from a workshop handling frequent size changes. List typical order quantities, member lengths and the expected C-to-Z mix. Discuss how size adjustment, profile changeover, tooling and job setup are handled, and agree which steps are automatic and which require operator intervention.
Supply hole diameters or slot dimensions, center distances and the reference used to measure from the member end. Include representative drawings for different orders. Clarifying these details early helps identify tooling requirements and avoids relying on a general statement that a line includes punching.
Define representative trial sections, material and inspection points before acceptance. Record which dimensions, cut lengths, hole locations and surface conditions will be checked. If production output is discussed, state whether the figure refers to forming speed or completed members under the agreed punching and cutting sequence.

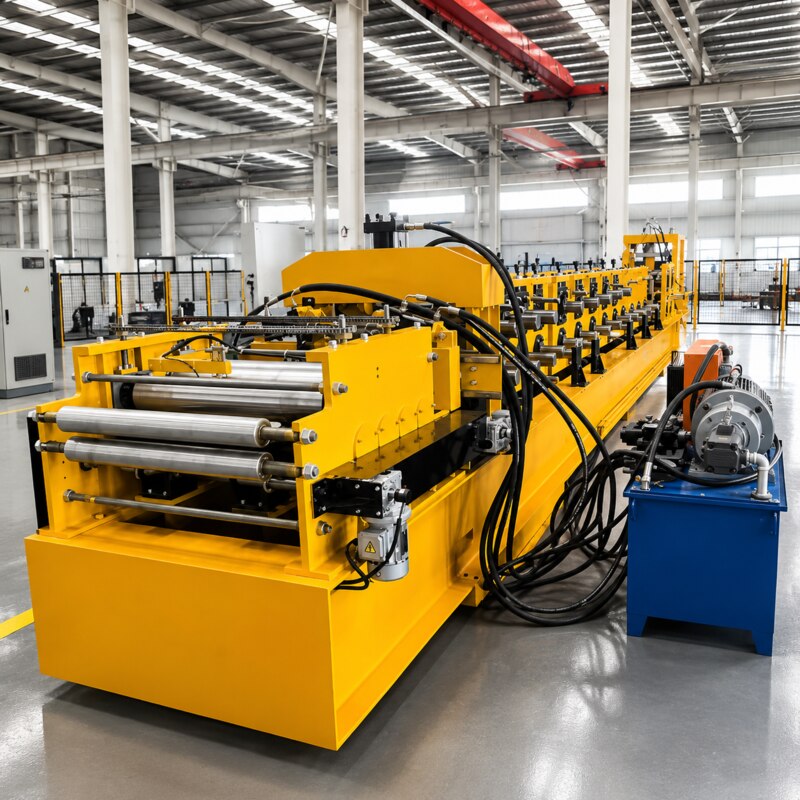

Share this package with Xinhonghua to discuss the appropriate purlin roll forming machine configuration. Our pre-cut versus post-cut guide explains another useful comparison for production planning.
Topics: C/Z Purlin Equipment Sourcing; Purlin Machine Technical Brief; Steel Building Manufacturing; Purlin Line Acceptance Planning.
